Fort Monckton

Fort Monckton1892

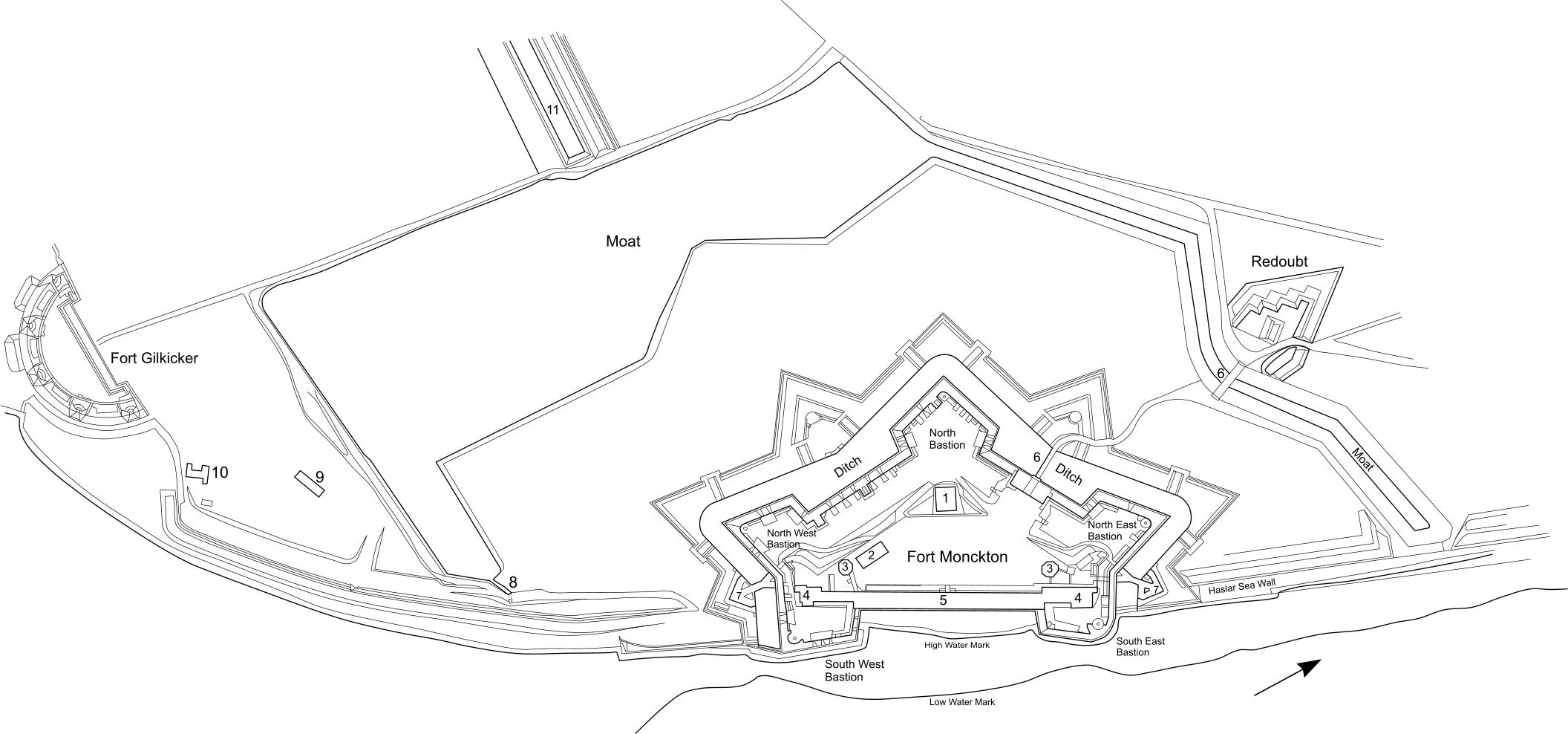

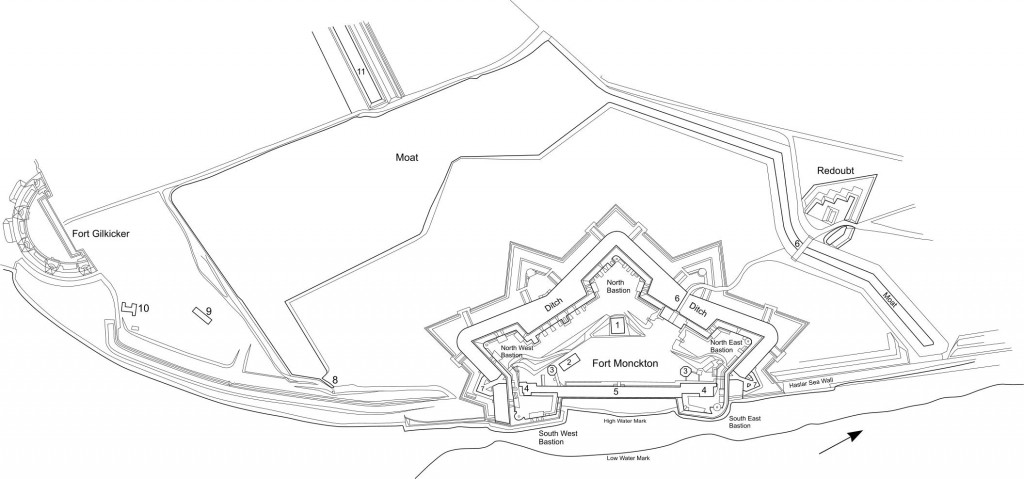

Fort Monckton 1892 (Drawing by David Moore) 1  Magazine (Canteen)  2  Recreation Room  3  Cookhouse  4  Officers’ Quarters  5  Soldiers’ Quarters  6  Drawbridge  7  Caponier  8  Sluice  9  Married Quarter  10 Stables  11 Stokes Bay Moat


Fort Monckton was constructed in the 1780s on  the site of a former fort known as ‘The Fort at Gilkicker’. This site was formerly occupied by the castle of Hasilworth (Hasleworth), which was dismantled during the reign of Mary Tudor.  Much controversy surrounded its design and construction and it eventually changed its name to the present ‘Fort Monckton’, named after the Governor of Portsmouth Lt. General Robert Monckton who had ordered a Colonel Archer to build it. The fort in its original form was practically completed during 1789-90, just prior to the French Revolutionary War of 1793. It was built mainly with civilian labour.

The new fort consisted of a bastioned trace with three bastions facing landward and two towards the sea. The curtain between the two sea bastions contained the barrack quarters with 22 gun casemates on the lower floor and barrack rooms on the upper floor. This sea front was faced with Purbeck stone presenting an impressive sight from the sea. The sea bastions had a parapet pierced with embrasures for guns.

  The road to the fort passed through an advanced redoubt (or redan) which protected the chicane that then lead on over the bridge spanning the ditch and through the entrance tunnel in the north curtain wall. In the centre of the north curtain was the gatehouse through which the entrance tunnel gave access to the parade. The upper floor consisted of accommodation casemates. Beyond the dry ditch the fort had an outer protection consisting of a wide water filled moat on the western side, with a narrower ditch on the northern side passing between the outer entrance redoubt and the inner bastions and curtain wall. This water feature was originally the natural lake formed at the mouth of the river Alver with a direct connection to the sea. When constructed in 1860 the Stokes Bay Moat flowed into this ‘Lake’ at Gilkicker and exited via a sluice in the southern end, to the sea. Parts of this lake were filled in the 1970s, including one section which now bisects it with a causeway for golfers at the point where the Stokes Bay moat originally entered. The ditch to the north has now been completely filled. As constructed the fort was to accommodate fourteen officers, two staff sergeants and two hundred and ninety eight rank and file. In the early 1800s  Fort Monckton was the Headquarters of the Royal Marine Artillery. When the 1860 Royal Commission was set up Fort Monckton was considered to be well out of date. It was given a minor defensive role in the great scheme for fortifying Portsmouth Harbour. In 1866 a detachment of the 29th Company Royal Engineers were quartered in Fort Monckton, together with a detachment of the 12th Brigade Royal Artillery. In  1872  and armament return gave the mounted armement as: 2 x 7-inch R.B.L. 2 x 8-inch S.B. 9 x 32pr. 2 x 24pr. 6 x 18pr.  and 7 x 12 pr. In 1878 the Royal Engineers moved into Fort Monckton to use it as a barracks whilst they trained in the use of submarine mines, and later searchlights.  In 1880 Fort Monckton was the headquarters of the 4th (Submarine Mining) Company Royal Engineers.  During this period the fort was the centre of many experiments in defensive warfare using submarine mines.

Fort Monckton 1879
Fort Monckton during a sham attack in 1879 (Illustrated London News)


Monkton 1879
Fort Monckton during a sham attack in 1879 (Illustrated London News)

In  1893  the armament of the fort was reduced to 6 x 64pr. R.M.L. The Portsmouth Division Submarine Miners (Militia) Royal Engineers were trained at Monckton for two months each year in May and June. In 1893 the Royal Marine Artillery also had a detachment of submarine miners at Monckton. In 1911 Fort Monckton and Fort Gilkicker were occupied by No 42 Company Royal Engineers. In 1924 the Royal Engineer occupying unit at Fort Monckton was the 22nd Fortress Company. Close to Fort Monckton was a huge complex of army barrack huts, officers’ bungalows and workshops called Monckton Hutments.. These formed the accommodation and workshops for apprentices training at the Fort and at the School of Electric Lighting at Stokes Bay. At the end of the parade ground, next to the road that ran through the middle the complex, was a small stone tower that survives today. This area was an extension of Haslar Barracks and was used by the Royal Engineers who also lived and worked in nearby Fort Monckton. It was part of a very large training complex that provided apprentices to the various necessary R.E. Trades, including masonry. In 1929 the ‘R.E. Mason Boys’ erected this tower, as a practice piece, just because they could. Yes, a folly! But it also had a practical purpose. It held a clock (or three). The Army needed to know the time, and the apprentices would certainly not want to be late for classes and duty.

Why was it this shape? Triangular in plan and of three tiers. The R.E.s would certainly have known of the two great sea marks that dominated the area before Fort Monckton was built. The Kickergill and Gilkicker towers (circa 1643). Gilkicker sea mark stood on the side of Hasleworth Castle until the building of Fort Monckton in the late C18 when it was demolished but Kickergill survived for many years, until wantonly destroyed by Gosport Borough Council in June 1965 under the pretext of ‘road widening’. So perhaps the R.E. Mason Boys wanted to replace Gilkicker with a smaller reminder of the past to go with the (then) still surviving Kickergill. It is triangular because Kickergill was triangular, and so perhaps was Gilkicker. This seems to be the only plausible explanation for its shape. Expel the myths: There is no truth in the rumour that the tower has a tunnel running from it to the fort! It was not used as a beacon or sea mark, or measured mile marker, it was not visible from the sea. We almost lost it. In May 1961 the War Office informed Gosport Borough Council that it proposed to remove the ‘present disused masonry clock tower’ at junction of the main road and path to Fort Monckton, and re-erect in Chepstow; Gosport Borough Council replied that they had no objection. Luckily it was only the clocks that were removed. I wonder who persuaded the council to leave the tower but I am glad they did. It is a quaint, but enigmatic structure that deserves a bit more love and attention. The council obviously look after it but should it not have a clock?

Mason Boys Tower Mason Boys Tower

During World War One Fort Monckton  was used to mount Anti-Aircraft searchlights and in World War Two it held an Anti-Aircraft artillery unit.
During World War Two the Gun Operations Room for Gosport A.A. defence was in Fort Monckton with the Master Gun Operations Room (Sector Control) for the entire Solent Sector in Fort Fareham. One armament return states that from 1939 to 1956 a twin six pounder was mounted in Fort Monckton for coast defence.

Fort Monckton

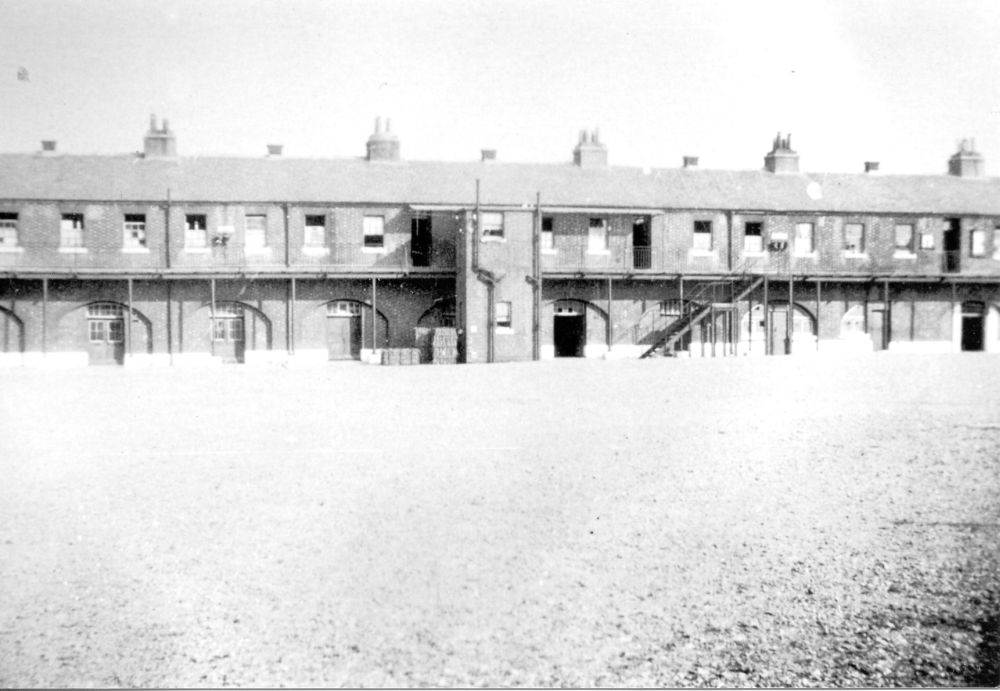

Fort Monckton: casemates in the 1920s.
Fort Monckton

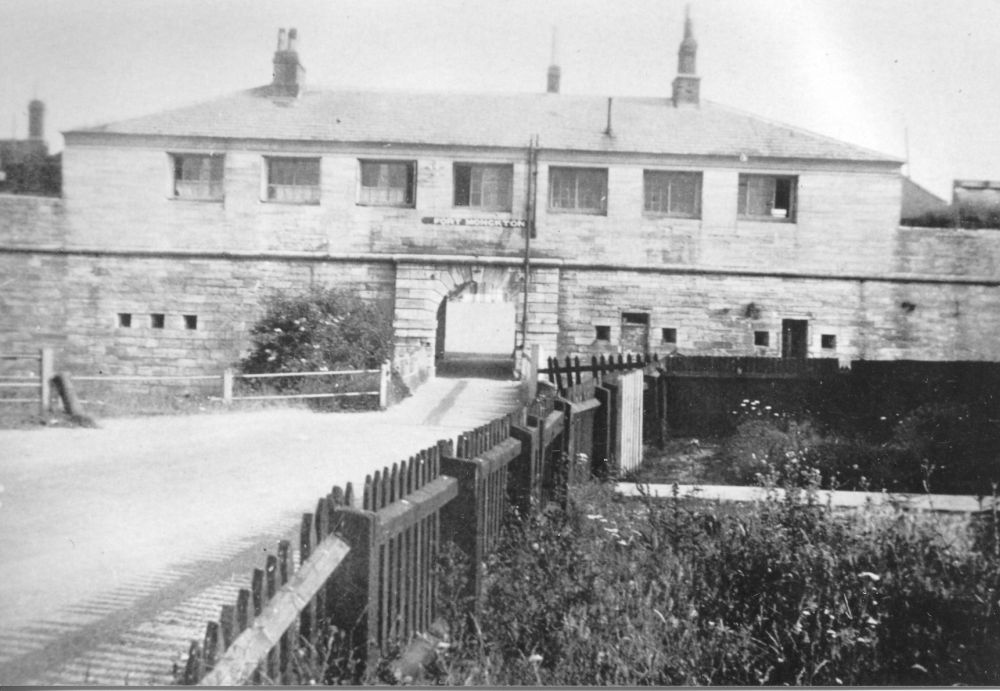

Fort Monckton: Guard House and entrance in the 1920s
Fort Monckton

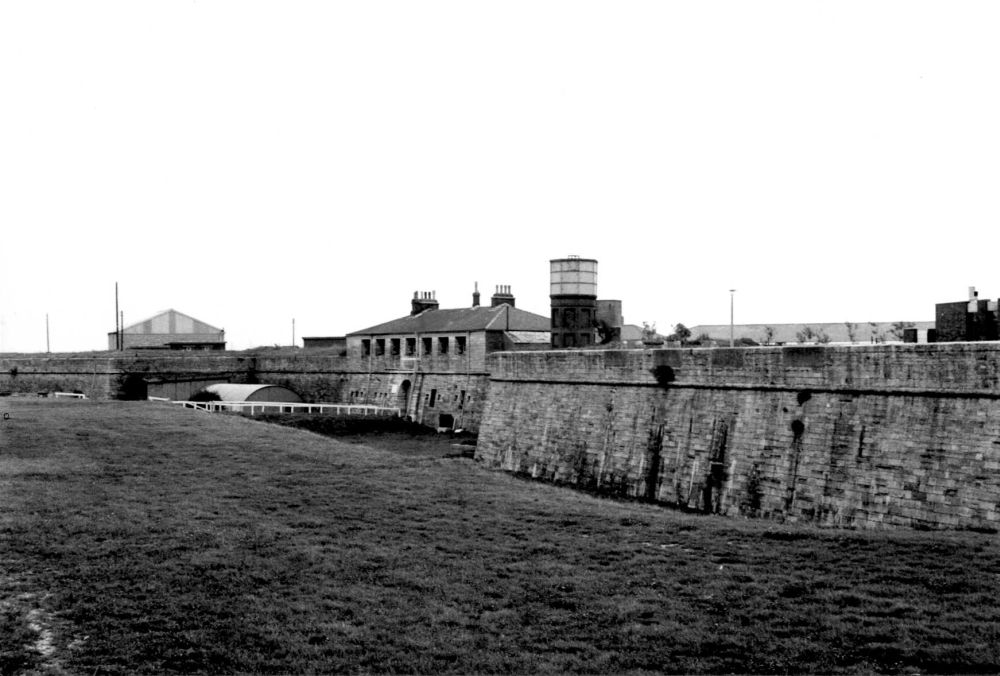

Fort Monckton: Ditch and land front in the 1920s
Fort Monckton

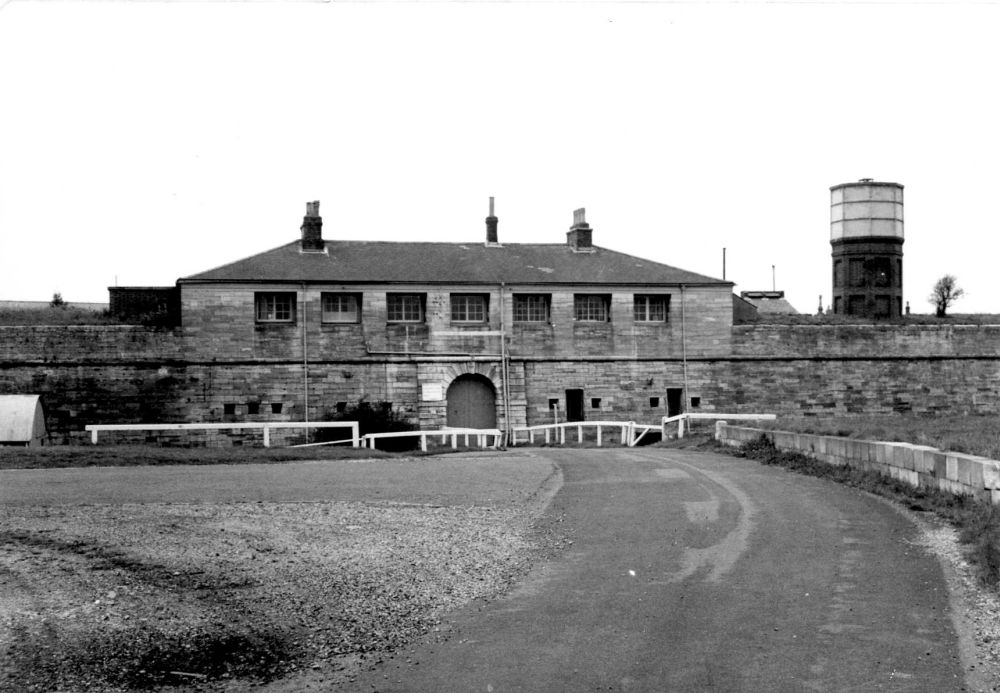

Fort Monckton: Guard House and entrance in the 1920s

The water defences to Fort Monckton, known locally as Gilkicker Lake, is a Site of Special Scientific Interest, due to its fresh/salt water environment. It has been partially filled by the local golf club, which now has a club centre just outside the fort.Almost the whole of the original fort still exists but it is a present occupied by the Military and no access to it is possible. Very few photographs exist of the inside of Fort Monckton except for a series taken for an article by Gosport Historian Godfrey Williams. A tiny glimpse of the fort can be made from a distance across the golf course at Gilkicker but any closer viewing is likely to cause a reaction from the authorities within. It has the honour of being the only fort of the Portsmouth defences still in Military (as opposed to Naval) hands. Rumours abound locally that the fort is used for the intelligence services, but this is only one small aspect of its modern use.

Fort Monckton from the sea

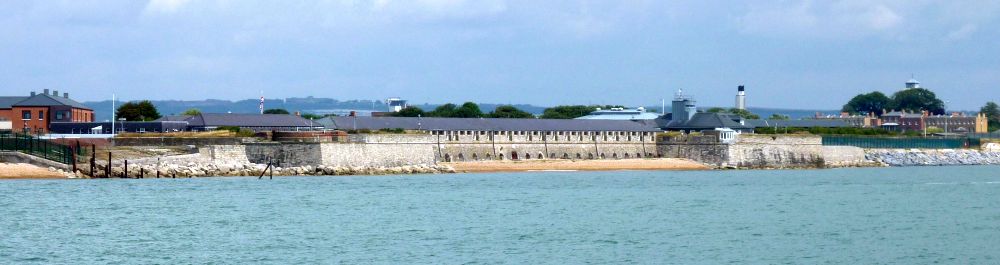

A view of Fort Monckton from the sea. The only view you are ever likely to see.

For a detailed description and history of  Fort Monckton read:
Solent Papers No.13 Fort Blockhouse and Fort Monckton by David Moore
